Lindapter Type AF

Lindapter Type AF high friction girder clamps allow the securing of steelwork to vertical beams without the need for welding. The top of the clamp is recessed to hold the bolt head captive when tightening the nut. A Type AFW insert is available that convert the clamp into a flat top, allowing a nut to be turned. The AFW nut can be inverted allowing larger hexagon heads of grade 10.9 bolts to be held captive. A skirt prevents the clamp from rotating during installation and is suitable for flanges up to 10°, ideal for S-beams. The correct tail length should be selected for the flange, AFCW washers and AF packers can be used to adust to the necessary depth. Download the Lindapter Type AF information sheet for full dimensional data.

View as Grid List
Sort by
Display per page
Picture of M12 Type AF Lindapter Short Tail High Friction Clamp H.D.G. AF12S 305151
Picture of M12 Type AF Lindapter Medium Tail High Friction Clamp H.D.G. AF12M 305152
Picture of M16 Type AF Lindapter Short Tail High Friction Clamp H.D.G. AF16S 305007
Picture of M16 Type AF Lindapter Medium Tail High Friction Clamp H.D.G. AF16M 305008
Picture of M20 Type AF Lindapter Short Tail High Friction Clamp H.D.G. AF20S 305153

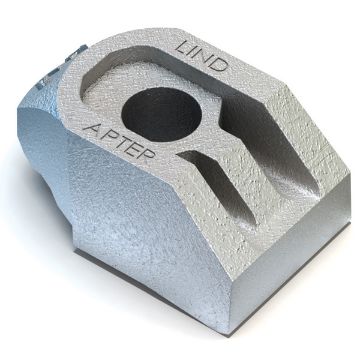

Picture of M20 Type AF Lindapter Medium Tail High Friction Clamp H.D.G. AF20M 305154
Picture of M24 Type AF Lindapter Short Tail High Friction Clamp H.D.G. AF24S 305155
Picture of M24 Type AF Lindapter Medium Tail High Friction Clamp H.D.G. AF24M 305156
